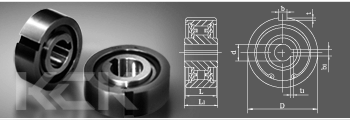

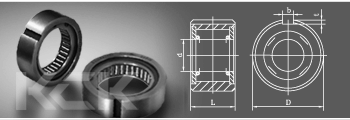

　 　    CKA series cam clutch 　 　    CKB(B200) series cam clutch 　
　 　 　
　 CKA series cam clutch is for high overrunning speed which mainly used in packing machinery, printing & dyeing machinery, food machinery, metallurgical machinery. 　 CKB series (B200 series) cam clutch is shaft mounted and non bearing supported .Bearings are required to support axial and radial loads. It can be used in packing machinery and transport machinery. 　
　

Torque:31.5-4500Nm
Max Speed:600-2500r/min
Bore Dia.:10-100mm

 　

Torque: 35.5-1390Nm
Max Speed:1000-2400r/min
Bore Dia.:16.51-80mm

 　
　
　
　

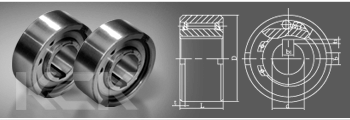

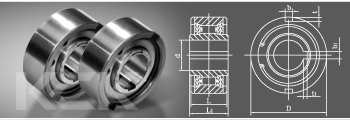

　 　     CKD (ASNU,UHF) series 　 　     CGD series 　
　 　 　
　 CKD series is cam clutch non bearing supported which mainly used in packing machinery, printing machinery, machinery, metallurgical machinery. 　

CGD series is roller-type clutch non bearing supported which mainly used in packing machinery, printing machinery, machinery, metallurgical machinery.

 　
　

Torque: 45-2000Nm
Bore Dia.:12-90mm

　

Torque: 15-3500Nm
Max Speed:1000-1500r/min
Bore Dia.:37 -190mm

 　
　
　
　

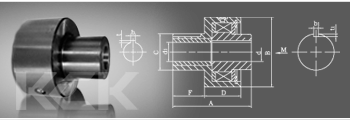

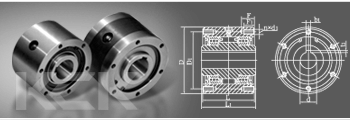

　 　     CKZ (MG,FSO) series freewheel 　 　     CKYZ(PB) 　
　 　 　
　 CKZ series (MG Series) freewheel is shielded by shield bearings on both ends. This freewheel is primarily designed for overrunning and backstop which used in crane and transport machinery, metallurgical and mining machinery. 　

CKYZ clutches is same as PB series Clutches. It is Self-contained clutch designed with a bronze bushing for bearing support . Hub diameter used for mounting auxiliary components such as gears, pulleys and sprockets.

 　
　

Torque:180-8000Nm
Max Speed:600-1500r/min
Bore Dia.:14-110mm

　

Torque: 100-1250Nm
Max Speed:1000-1500r/min

　
　
　
　

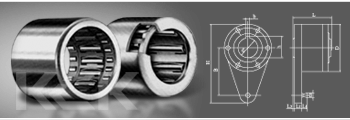

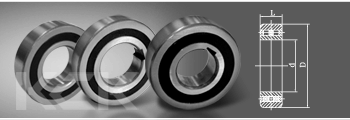

　 　     CSK(KK) series clutch 　 　     HF and HFL series 　
　 　 　
　 CSK(KK) series clutch is a sprag type freewheel integrated into a 62 series ball bearing. It provides you with a one way clutch, and eliminates the need for a ball bearing. It can be used in packing machinery, printing machinery, food machinery. 　 HF and HFL series is a drawn cup needle roller clutches have a very small radial section height. This makes optimum use of the available space and allows compact designs to be achieved. These clutches are suitable for converters, non-return devices and transcendental clutches. 　
　

Torque: 7.4-260Nm
Max Speed:3000-10000r/min
Bore Dia.:12-40mm

 　

Torque: 1.76-121Nm
Max Speed:3900-23000r/min
Bore Dia.:6-35mm

　
　
　
　

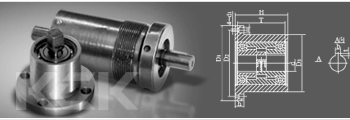

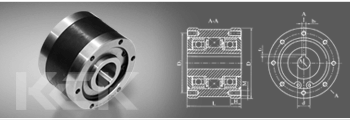

　 　     CKF series cam clutch 　 　     CKS series clutches 　
　 　 　
　 CKF series cam clutch is centrifugal lift off cam type freewheel with the inner race rotating. It can be used in crane and transport machinery, metallurgical and mining machinery. 　 CKS series clutches are Bi-directional clutches .It can be used in packing machinery, printing machinery, crane and transport machinery and machine drive parts of test stands. 　
　

Torque: 400-25000Nm
Max Speed:1000-1500r/min
Bore Dia.:25-160mm

 　

Torque:20-300Nm
Bore Dia.:6-35mm
